My love affair with Marxman pipes sometimes gets the best of me or worst of me. This pipe started out as just a typical listing on eBay for two pipes. The E. Wilke is the one that caught my eye and the Marxman was a deal sweetener.
I made an offer that was accepted. The seller messaged me saying that he broke the Marxman while putting the stem back on and that he was going to substitute a Dr Grabow pipe. I replied by saying that I bought the two pipes from the listing and did not want a Dr Grabow. We messaged back and forth, him saying the pipe was thrown away, me saying I’ll still take it but I wanted a discount of the original price. He eventually sent me the broken Marxman, though without the chipped piece from the shank and the Wilke. Below are some photos of the Marxman prior to work being done.
The glaring repair was the large chip from the shank. I thought the best way to fix this would be to cut a piece of briar from a donor pipe and carve it to fit. The whole piece would then be covered with a band. The replacement briar would provide the strength and fill the void. Other than that this looked like a typical restoration.
Background
I have restored numerous Marxman pipes and blogged about several. I will not go into great detail fawning over the amazing Robert Marx and his marketing genius. I will include a link to one blog where I detailed the history of the; company, myth, legend and the man that was Robert Marx. If you’d like a nice brief history, pipedia.org has a nice Marxman primer HERE.
The Restoration
The poor broken Marxman made its way to the workbench and a clean denim piece.
The first task was to find a donor pipe that was close in size. I found an old Bruyere Guarente with nearly the same diameter. I felt a little bit sad for the poor donor then looked upon the large number of fills in the old French billiard and thought that would live on in this Marxman.
I measured the approximate chip dimensions and marked them on the donor.
The ream team was gathered and included the PipNet, Smokingpipes Low Country Reamer and the General triangular scraper.
The PipNet #1 blades were used for most of the work. The #2 blades were just a bit too large for the tobacco chamber so the other two reamers were used to finish the scraping.
The tobacco chamber was then sanded with 220 sandpaper wrapped around a wood dowel. No heat damage was observed in the chamber.
Airway cleaning was next. The initial alcohol soaked cotton swabs and pipe cleaners came back black with smoking residue. The best part about the chipped shank was that I could get a little bit deeper into the shank with the dental scraper. The scraping produced a great deal of tar and yuck.
The cleaning continued with more alcohol, cotton swabs and bristle pipe cleaners. There was also more scraping and scrubbing with a nylon shank brush.
The stem was cleaned with 95% ethyl alcohol and bristle pipe cleaners. The tooth dents were filed with a small flat file.
The filing also addressed the reshaping of the button.
A couple of weeks ago Richard Messineo (BRIARVILLE TOBACCO PIPE REPAIR & RESTORATION) asked for my address. He said that he’d like to send me some of Briarville’s Stem Oxidation Remover to try. Apparently he had read the blog and still thought that Briarville should be associated with this blog. Weird, eh? Heck, I don’t even know if I want to be associated with some of the ramblings found here… Anyway, the Briarville Stem Oxidation Remover (Briarville deox) arrived and I was anxious to give it a try. The label said to leave the stem in the solution for between 2-24 hours. The solution was a lovely bright yellow and was far more liquid than the Before and After Extra Strength Deoxidizer (deox) that I have been using for the past several years. The Briarville deox also has a much less offensive aroma than my old deox. The stem received a pipe cleaner to act as a hanger to suspend the stem in the solution.
As I was cleaning the shank and stem I was thinking about the best way to cut the donor shank and remove the patch. I opted to use the Dremel rotary tool with a cutoff bit.
The large diameter would create a larger cut on the donor but the thin nature of the cutoff bit was a plus.
The cutting went without issue and provided me with a pretty good match to the chipped portion of the Marxamn. Some minor shaping was done to improve the fit with the flat surface of the cutoff bit.
Below you can see a rough fitting of the patch.
Here is the opposite side.
The stummel was taken to the sink for a scrubbing with undiluted Murphy Oil Soap and a nylon brush. The soap was rinsed with warm water and the stummel dried with a cotton hand towel.
I looked over at the Briarville deox. The stem had been in the solution for about an hour. I noticed there was a brown swirl at the bottom of the jar. Cool, it works.
Back at the workbench, the stummel looked better. The scrubbing revealed a couple of old fills that were quite soft, one on the left of the bowl and another on the right at the junction of the shank and bowl. I picked the old fill out of the pits with a fly tying bodkin.
I wiped the surface of the stummel with a make-up pad dipped in 95% ethyl alcohol.
Below is the pit picked of the old fill.
And the second pit.
The pits were filled with brown cyanoacrylate (CA, super glue) applied with a fly tying bodkin.
I then pressed briar dust into the pit. The new fill was then filed smooth and sanded with a 400 grit sanding sponge.
And the second fill.
The next day I returned to the stem. It had spent about 12 hours in the Briarville deox.
The stem was removed and placed on a coarse shop rag.
I vigorously rubbed the stem with the shop rag. Some oxidized vulcanite was removed by the rag.
Back at the workbench I examined the stem and compared the results between the two solutions. There was a light brown residue on the stem. The residue was also present in the stamping of the stem logo.
I wanted to treat the stem like I would if I were using the Before and After product so I scrubbed the stem with Soft Scrub on a make-up pad. The Soft Scrub removed more oxidized vulcanite. The light brown residue was removed with this scrubbing.
After the scrubbing I applied Before and After Hard Rubber Balm.
I gathered the stuff that I needed for the gluing of the patch into the chipped area. I wanted to use epoxy due to the more forgiving nature and longer setting time.
I wanted to glue the patch in place with the assistance of the tenon to keep this aligned. To keep the epoxy from adhering to the tenon, I applied a coating of petroleum jelly to the tenon.
Below, you can see the well greased tenon.
The epoxy was placed on all of the surfaces and clamped. The next three photos show various views of the clamp. This epoxy is said to set-up in 15 minutes. I let it sit for 30 before removing the clamp and stem.
While the epoxy was setting-up I measured the width of the brass band. I thought that a band that completely covered the patch looked too large for the size of this pipe. I chose to make the band a bit smaller and looked more appropriate.
After 30 minutes the clamp and stem were removed. The patch looked good. I thought that it provided good contact with the existing shank and the tenon. The band would provide the reinforcement strengthening the whole shank end.
I began filing the patch making the patch fit the contours of the shank.
There were small seams which I filled with brown CA and briar dust, as with a normal fill.
The above fills were smoothed with a file and sanding sponges. In preparations for the sanding, the shank stamps were taped on both the left and right sides.
The stummel was sanded with a series of sanding sponges from 320-3500. Between each sponge the briar was wiped with a make-up sponge moistened with alcohol.
The stummel was then worked with micro-mesh pads 4000-12000. Again, between each pad the stummel was wiped with a make-up pad wetted with alcohol.
To keep the joint from being rounded by sanding I wanted to sand it attached to the shank. I was not worried about rounding the shank end since it would be under the band but I still did not want to remove briar from the shank so, I wrapped it in masking tape.
The stem logo was taped over with masking tape for its protection. The stem was sanded with a series of sanding sponges from 320-3500 grit. Between sponges the stem was rubbed with mineral oil and wiped with a paper towel to remove sanding debris.
The stem was worked with micro-mesh pads from 4000-12000. Between pads I rubbed the stem with Obsidian Oil and wiped it with a paper towel.
The brass band was temporarily fitted. I could see that the filing and sanding of the shank end had made it lighter color than the rest of the shank. I thought that I could match the color better with a Furniture Touch-up marker. Oak was the color of choice.
Below you can see the stained shank end.
To glue the band in place I used brown CA applied to the shank and pressed the band in place against the workbench.
I thought the stem logo would look good in a color that accentuated the brass band so gold leaf Rub’nBuff was used. I first cleaned the logo stamping with alcohol on a cotton swab.
The Rub’nBuff was applied with a fly tying bodkin and worked into the stamping.
The Rub’nBuff was buffed off holding the stem and rubbing it on the denim work surface.
The stem was then re-oiled with Obsidian Oil.
The stummel received a coating of Before and After Restoration Balm and was allowed to sit for 20 minutes.
After the Restoration Balm worked its magic the excess balm was wiped with an inside out athletic sock.
The pipe was taken to the buffer to polish the brass band with white buffing compound.
After the metal polishing the pipe was wiped thoroughly and waxed with several coats of carnauba wax with the buffer.
The final step was a hand buffing with a microfiber polishing cloth further deepening the shine.
I think this Marxman turned out very well. I am still having internal debates as to the band width. I think it looks great with this band but I wonder if a band that concealed the whole scar would have been okay. The repair is solid and the stem fit is very good. I have no worries about the repair failing. The band looks like it is original and adds a flourish which improves the look of the pipe. The Briarville Stem Deoxidizer was a very nice product to work with. I cannot say at this point whether I prefer it or not over the Before and After Extra Strength Deoxidizer. More testing will be done on future restorations. I can say that it works well and is less messy to use. The stem looks great with no signs of oxidation but it was not a heavily oxidized stem to begin with. These dimensions of the Marxman lovat are:
Length: 5.20 in./ 132.08 mm.
Weight: 0.74 oz./ 20.98 g.
Bowl Height: 1.56 in./ 39.62 mm.
Chamber Depth: 1.37 in./ 34.80 mm.
Chamber Diameter: 0.67 in./ 17.02 mm.
Outside Diameter: 1.20 in./ 30.48 mm.
I do hope that you have found something here useful to your own pipe care, maintenance or restorations. If you like this sort of thing, please click the like and subscribe buttons. Thank you for reading the ramblings of an old pipe lover.
Loading…
Below are some photos of the finished Marxman lovat.
This may just be the longest restoration yet. Trust me when I say this project has been ongoing since August 15 and today is September 10. For context a normal restoration takes me 2-4 hours not including drying or soaking time. Let me start in the beginning which normally is where stories begin. This pipe was purchased on August 6. I knew it had issues, which you will see shortly, and would allow me to practice several techniques that I wanted to become better at. The pipe was listed on eBay as a “Buy now” for $20 or best offer. I offered the seller $16 and they accepted. In a few minutes you will think I am losing my cognitive faculties or that I probably never had that large of a faculty to start with.
The pipe was sent from Hudson, New York to the wilds of southeast Nebrask and arrived after 6 days, August 12. Upon opening the package I was a bit surprised at the severity of the issues which I had willingly adopted. I’ll let the photos speak for themselves. Here is the pipe prior to any work done.
Remember, I said it had issues. I can hear folks saying, “What kind of masochistic idiot are you?” and probably some comments about wanting to sell me fine swamp land in Louisiana or perhaps a bridge in Brooklyn. I wanted to practice the cracked bowl pinning technique by Charles Lemon (you can see that here), repairing cracked shanks and I am continuously working on different ways to repair chewed up mouthpieces (this time with black epoxy resin). So, now you see I thought I could do all of those things with one pipe. There was madness to my madness. No wait, that’s supposed to be, there was a method to my madness.
Background
Over the past almost a year, I have restored 7 Marxman pipes. This will be the 8th. And you say, “I thought you went by the name Nebraska Pete Geek?” Well, I just counted and I have done 12 Petersons so, the name is well founded. I do love an old Marxman pipe though. The amazing history of Robert Marx was summarized by me in an earlier blog which I will include again here:
On January 11, 2024 I blogged about a Marxman Gold banded Dublin (linked if you are interested) and wrote the following about Robert Marxman and Marxman pipes:
“My recent fascination with the post-World War Two (WWII, to properly use an acronym) led me to further appreciation of the Marketing genius of Robert Marx, the founder of Marxman Pipes Inc. Allow me to illustrate:
Those are the back covers of Pipe Lovers Magazine for each month of 1946. That represents a substantial investment in building and maintaining one’s brand name.
Here is a quick review of Marxman pipes from pipedia.org:
“Marxman (Marxman Pipe Company) was created by Robert (Bob) L. Marx in 1934, when he was 29, and after he had worked for the William Demuth Company. His pipes were not outstanding because of the quality of their wood (probably Algerian), but Bob started making unique sculpted pieces, which brought the brand fame in the World of Hollywood cinema. Actors like Zachery Scott, Dennis Morgan, Jack Carson, Alan Hale, Joel McRae, and Ronald Reagan were some of the faces that appeared on the bowls.
Bob knew how to innovate and took full advantage of marketing and press advertising in order to sell the brand–one of his slogans being “Relax with a Marxman”.
In a recent forum post on Pipesmagazine.com, contributor jguss posted the following from the February 2, 1935 issue of the UnitedStatesTobaccoJournal:
A remarkable article showing the business acumen as well as a photo of the man himself. Thank you, jguss.
This is one of my favorite quotes about Rober Marx:
“Ted also said: Several years before UST bought Mastercraft, M/C had aquired Marxman Pipes. A wonderful kind man, Bob Marx was still working as a salesman in NYC, and I was fortunate to make a few sales calls with him. You all remember Charles Atlas? Bob Marx was about 76 and had just been awarded the (I think) Atlas Award for being the finest speciman of manhood over 70 years old in NYC, or maybe the state.
M/C had some inventory of Marxman stuff, but not a lot. I know very little about Marxman. Did they make, import, or both?” (Mastercraft – Pipedia)
The “Ted”, who is being quoted above, was the nickname of Tom Douglas. Here is an announcement of Mr. Douglas’ passing from Pipesmagazine forum November 26, 2018:
“Tom Douglas passed away at 71 years of age, this past Saturday, in Florida. It seems he had an infection in his stomach, but I don’t know much more than that, regarding what actually contributed to his death. He did have a history of heart and other health complications. I just spoke very briefly with his wife Joyce; you can imagine how she’s doing.
The impact Tom had on the pipe community is huge…beginning with an immense library of pipe knowledge through the pages of the Dr. Grabow Collectors Forum….his 25 years of service at the Grabow / Sparta pipe factory (where he retired in 1991)….his executive leadership over Mastercraft distribution for many years…”
So, at 76 years old Robert Marx was still involved in the business that he must have loved. This would have been around 1980.”
Then last winter, Mark Irwin, of Peterson Pipe Notes and author of The Peterson Pipe book, sent me a c. 1945 Marxman Brochure. I photographed the pages of the brochure and included them below.
One of the easiest things to date is a Marxman pipe. The company was formed in 1939 and sold in 1953 to MasterCraft. Though the Marxman name continued after 1953 the pipes were made in France or Italy and stamped as such with Country of Manufacture (COM) stamps. This means that a non COM stamped Marxman pipe was made in New York City between 1939-1953.
This pipe is undoubtedly a Marxman Jumbo as seen on page six of the above brochure. As a “C” size this pipe would have commanded a price of $10 in 1945. According to the Consumer Price Index inflation calculator that would equate to $173.78 today (July 1945 to July 2024). (https://data.bls.gov/cgi-bin/cpicalc.pl?cost1=10&year1=194507&year2=202407)
The Restoration
Oh no, the poor battered beauty can’t even get an unstained denim piece to rest upon. The bright side is that it will look significantly worse shortly.

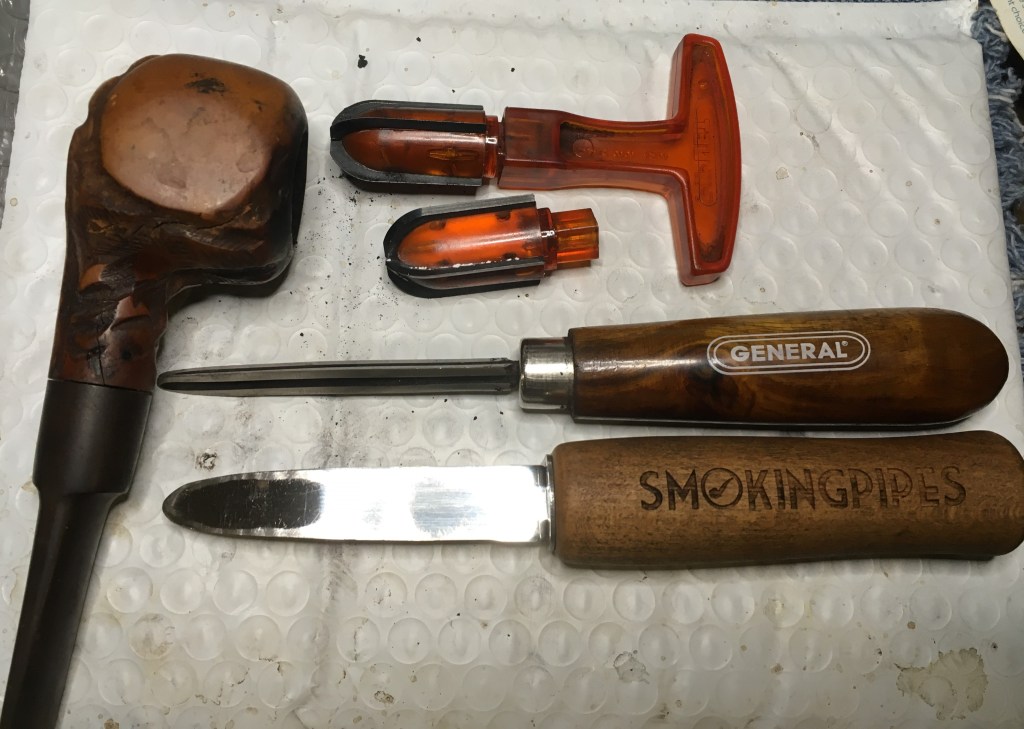

I started with the reaming of the tobacco chamber using a PipNet with the size 3 and 4 blades. The #4 rarely gets to come out and play.
Typical of Marxman pipe the reaming was very easy with the cake coming easily off the briar. The chamber was sanded with 320 sandpaper wrapped around a wood dowel and taken to bare wood. No heat damage was observed.
The shank was a dirty mess. For as easily as the tobacco chamber gave up it’s accumulated cake the airway clung to it’s smoking residues tenaciously. Several scrubs with 95% ethyl alcohol and a shank brush followed by alcohol dipped cotton swabs were used. I was getting frustrated and my thoughts turned to the next steps.
It was during the repetitions of scrubbing that my mind started to process ways to repair the cracked shank. The first thought was merely a brass band. I did this with a Marxman Mel-O and that restoration turned out very well as the below photo illustrates:
My thoughts shifted to considering an internal band. I had seen a video on how to make a pipe with a military mount by J. Alan of jalanpipes.com a few years ago. Here is that video. In the video he used a piece of brass and filed teeth into the brass tube. He then used the tube to cut a circular slot or hole just outside of the mortise on the shank. A piece of brass tube was inserted into this circular slot and the shank had a reinforcement that could take significant abuse. I filed that away in the back of my mind. For whatever reason the thought of a brass reinforcing band inside the shank of this pipe seemed like a good idea. The shank was thick and could easily accommodate a band and what the heck, it was already cracked. How badly could I screw this pipe up? In hindsight, I should have watched the video again or researched this technique more but I was in “problem solving” mode.
I looked through the stock of brass tubing that I had and found a piece which looked to be the perfect diameter. It was 5/8th inch outside diameter tubing. Next I started filing teeth on the edge of the tube. I couldn’t remember how many teeth were used in the video and couldn’t be bothered to rewatch it. As you may have guessed by my complete lack of video that I really do not like videos. I think it comes from being a teacher for 32 years. Rather than read, research and learn things like I did as a student, all students ever wanted to do was “watch a video”. This is fine and dandy for seeing how to replace the gas cap door on a 2004 Ford F150 (yeah, I just did that) but there isn’t a video on the life of Robert Marx. Videos are a great tool for some things but they are not the sole source of learning. Anyway, I filed some teeth.
They looked like they would cut briar. They also looked like they would have to be brought out of the hole and have the saw dust blown off of them frequently. I was in uncharted territory and expected some learning by trial and error.
In my imagination the brass tube/cutter would be clamped into a chuck of some type and spun at some speed, probably slow and lowered or slid into the shank which would be clamped somehow. Yeah, there was a lot of “some” in my thought process at this time. I do not have a drill press nor a lathe. The thought of using hand tools for this operation seemed ridiculous. I then contacted my son-in-law’s brother who is a machinist extraordinaire. The date was August 15, 2024. He replied the next day and was worried about brass being able to cut the briar. I then realized that he spent his days cutting far tougher material like steel, stainless steel, titanium and cobalt-chromium alloys. Yeah, he works in a prosthetics lab. He had the experience, tools and know-how needed to help with this endeavor. More on this later.
I had a rim to clean up and a stummel to scrub and a whole bunch of clean cotton swabs which were demanding to be filthy..
So that is what I did. The stummel was taken to the sink and scrubbed with Murphy Oil Soap, undiluted , and a nylon scrub brush. The years of dirt and the lava came off quickly. The soap was rinsed with warm water and the stummel dried with a cotton hand towel.
Back at the bench things were looking good both in the reality of the drying stummel and in the realm of my imagination of how the shank repair would proceed.
I certainly was back in reality, with a really dirty shank.
That brought me to the next new idea I wanted to try. In one of the Facebook groups that I am in, someone mentioned using two part epoxy to repair and reconstruct buttons. I wish I could remember what group or who the person was who had sown this seed in my brain. I thought that I needed to try it out and this stem was a perfect subject. The stem was cleaned using 95% ethyl alcohol and bristle pipe cleaners then lightly sanded to remove some of the surface oxidation and allow the Before and After Extra Strength Deoxidizer access to the vulcanite.
A pipe cleaner was inserted into the remaining button, to act as a hanger suspending the stem in the deoxidizer, and it was lowered into the deox ( my term for the liquid).
According to the time stamp on the photos the stem was in deox for 7.5 hours.
That gave me plenty of time to soil another stack of cotton swabs in an attempt to exorcize the tar demons from the airwair. Finally, I was victorious and the airway was clean.
The seemingly unending airway scrub did allow me time to ponder the next step and the next technique that I wanted practice with. That is the repair of a cracked bowl using strategically placed brass pins. I first saw this technique in a post by Charles Lemon of Dads Pipes. Charles is a real restorer, unlike me, and actually does this for a living bringing back family heirlooms and working magic with his impressive skills. You can find Charles’ pinning tutorial blog here. I had used pins to repair a cracked shank as a first time practice ordeal and again with a cracked bowl, both blogs are linked if you care to make fun of my attempts. This cracked bowl was more of a cosmetic crack in the briar. It did not extend through the wall of the tobacco chamber and looked more like it was from an improperly cured piece of briar rather than a case of excessive cake. Either way, I was going to repair it with brass pins. I first filled the crack with brown cyanoacrylate (CA, super glue) pushed into the crack with a fly tying bodkin. The CA was allowed to cure in it’s own time and was not accelerated by a CA drying accelerator.
Once cured the surface of the CA was roughened up a little bit to better blend it with the carving on the stummel. I used a round rat tail file and a diamond needle rat tail file for the roughening.
My jumping around from task to task with this restoration shows my desire to plan and think through each of the multi-step procedures used with each technique. I use the time stamps from the photos to sequence the restoration process that I present to you. I apologize if this makes it hard to follow while reading. This is the way it all happened though
I wanted to give the CA adequate time to cure so I busied myself with the repair/rebuilding of the stem. Someday I’ll get a drill press or a lathe and that cool tenon turning tool and I’ll just make stems rather than try to reconstruct them. There’s that imagination again. Anyway, the stem was removed from deox and wiped with a coarse shop rag. This more abrasive material is great for absorbing the excess deoxidizer and abrading away some of the oxidized vulcanite.
Aug. 15 (I’m using the dates here to show the curing times of the epoxy.)
To rebuild the button, I first cut a dam from a plastic lid. This dam was coated with petroleum jelly and inserted into the airway in an attempt to keep the epoxy for sealing it off. I mixed the two part J. B. Weld black epoxy as per product instructions.
I used a piece of Scotch tape around the bottom of the stem to aid in keeping the epoxy on the top then applied the epoxy to the fill area with a fly tying bodkin. The stem was set aside for 24 hours to cure.
Aug. 16
The next day, I checked on the epoxy to see how well it was working as a fill material.
The dam was removed easily and appeared to have work at keeping the epoxy from the airway.
I took the stem to the photography bench for some better than the phone photos.
The surface was roughed up with a 320 grit sanding sponge to give the next application of J.B. Weld something to bond to and the dam was reinserted.
Another batch of epoxy was mixed then applied to the area to build up the missing material for a proper button. This application was again set aside for 24 hours.
Aug. 17
This was nowhere near as quick as using a black cyanoacrylate (CA, super glue) to fill an area but I was still curious as to its effectiveness. I filed the 2nd application and reformed the button.
The epoxy filed and sanded more easily than CA would have. I was sure that it would cure to a harder consistency in a couple of days.
Aug. 18, 8:30am
A third application of J.B. Weld was applied to the stem. This time to a larger area. I wanted a wider area to use for blending the original stem to the new patch. This application also was spread on the top and bottom of the stem.
A pipe cleaner was inserted to act as a hanger and the stem was hung to cure.
Aug. 18, 9:50pm
13 hours later, I checked on the curing of the epoxy. The surface was rough rather than smooth, as it had been with the previous two applications. I did like the way tha material built up though.
Aug. 19, 1:00pm
Another 15 hours later and I returned to the cured epoxy on the stem. The rough texture remained and the epoxy felt more tacky than the previous iterations. The new material pulled away from the second application as I was filing it. Bah, that won’t do. I peeled the 3rd application off the stem. I was not sure if it was a bad mix or what had happened. One thing that I was certain about was that I preferred to use black CA for rebuilding buttons.
All this time between sessions with the pipe did allow me to thoroughly plan how I wanted the pinning to go. I drilled 3 holes with a 2mm drill bit. Each hole was drilled at a different angle and each transected the crack. The below photo shows each hole with a piece of 2mm brass rod. I had gotten better with my drilling and none of the holes had emerged all the way through the stummel.
The hole depths were measured with their respective rods. Each rod was cut slightly shorter than the depth of the hole.
I applied a small drop of brown CA to a hole and quickly pushed the corresponding rod into it to a point below the briar surface. The below photo shows all three rods pressed into place. You can still see the brass peeking from the holes.
The holes were then filled with another application of brown CA and topped with a small scoop of briar dust. The dust was pressing into the wet CA. The fill was then sanded smooth on the rim and slightly smoothed in the carved areas. This project took an intermission while I waited to schedule a visit to the machine shop of my fellow conspirator.
Sept. 9
A date had been set for the machine shop visit. This was a clandestine operation after hours. In preparation for the event, I needed to glue the shank crack with CA. I used a thin clear CA to penetrate the crack as deeply as possible. This was applied with the ever popular fly tying bodkin and quickly clamped.
The clamping provided no visual compression of the crack but it made me feel like I accomplished something. I then applied a thin line of brown CA to the crack to fill it with the fly tying bodkin.
Sept. 10
Now to protect my fellow conspirator’s identity, since we were infiltrating his shop after hours and without the knowledge of his overlord, I will refer to him as Christian. A fitting name and perhaps title. I explained what I thought we could do and how I imagined it happening. Christian immediately understood and dashed my imagined process with a healthy dose of reality. He said that this was a job for the milling machine. The first order of the new reality based procedure was to shorten my brass cutter to fit into a collar which could be mounted into the chuck of the milling machine.
Next we needed to clamp the stummel into position in a way that limited movement without marring the briar. This was done with a couple of scraps of a clear soft plastic between the vise jaws and the stummel.
The cutter was aligned with the shank.
Turtle speed was selected on the milling machine.
And the cutting was begun, very slowly, maybe 0.5 mm then I’d blow the dust away with the compressor.
This continued and was looking very promising. I hadn’t really thought about how deep to make the slot. It was determined that 5 mm would probably be sufficient.
The depth gauge was set to the 5 mm goal and the cutting proceeded.
Once achieved, the slot looked as good as I had imagined.
The next task was to cut a 4.7 mm wide brass band from the same tube the cutter was made with. This would ensure a perfect fit. We moved to the lathe to square up the end of the brass tube.
The lathe was set to cut a precise 4.7 mm wide band. We thought that this would allow me to press the band into the slot so that it would be flush with the face of the mortise and would require no sanding of the brass band. The no sanding was important for a proper fit with the stem to maintain the shank to stem joint.
The band cutting proceeded successfully on the second attempt after Christian had sharpened the cutter. The first attempt met with a hot mess. Literally, the dull cutter made an out of round band that was very hot.
The band seemed to fit beautifully. It was not pressed in fully as there was no way to extract it once it was in there. Also, my crack glue-job seemed to be holding without the reinforcing band.
After many thank-yous, a Mission Impossible like extraction from the machine shop and a drive back home the Marxman was back to the home workbench.
I thought about which glue to use, CA or epoxy for gluing in the band. I settled on epoxy due to my fear of not being able to move fast enough for the CA and having the CA set-up before I had the band fully pressed into place.
I applied a bead of epoxy to the slot.
Surprisingly, I remembered to roughen the inside and outside of the brass band with a sanding sponge.
The band was then pressed into position.
The excess epoxy was cleaned up with a cotton swab dipped in acetone and… (dramatic pause). OH CARP! There was about 0.2-0.5 mm of brass band sticking up above the surface of the mortise. What had gone wrong? I texted Christian, if that is his real name, and explained what I was seeing. We had both noticed that my brass cutter was significantly more dull when we finished cutting, back at the shop. He thought that the dulled teeth would have given a false 5 mm depth to the cut. I agreed and thought that maybe the epoxy would have added another fraction of a mm. In hindsight, the band would have been better cut at 4.5 mm to ensure greater clearance.
I used a small flat file to remove as much of the brass as I felt comfortable removing. I had to go very slowly and with great care to avoid filing any briar. I then took the stummel to the topping board there. I very slowly sanded the brass to flush with the briar. I failed to photograph any of this, apologies. I did photograph the resulting fit though.
Below is a photo of the internal brass band in all of it’s glory.
Now to finish this stem. I thought I could go over the patch on the bottom of the stem with black CA and that it would make the difference in the vulcanite and the black epoxy disappear. Once again the imagination was working beautifully and all of the imagined repairs were equally as beautiful.

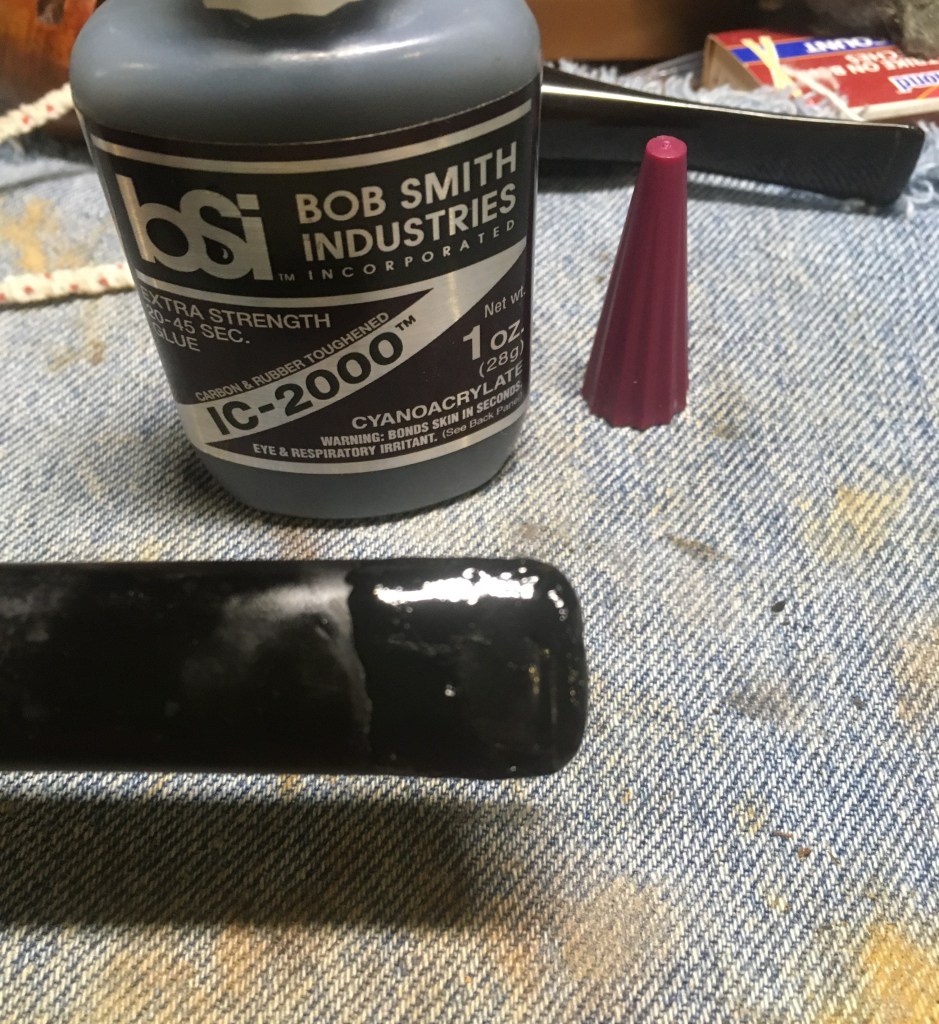

I painted the bottom of the stem with the black CA.
The CA was then spritzed with a CA drying accelerator. The subsequent area was filed and sanded to blend the vulcanite with the patch. You’ll have to wait or jump to the end to see how reality dealt with my imagined results. This is mainly because I failed to photograph it. Umm, I mean, that I want to build anticipation. Yean, that’s the ticket.
To rebuild the button proper, I Scotch taped the stem right against the button This kept me from having to re sand the blended stem patch. It also allowed me to file and sand the button without scratching up the already smoothed stem. I applied layers of black CA to the button, spitzed with the drying accelerator and while the CA was still soft, I made a straight cut through the still pliable CA giving the button a more defined seam where it met the stem.
The above was done for both the top and bottom. Both sides were filed then sanded to a proper shape.
Here you can see the progress from the side.

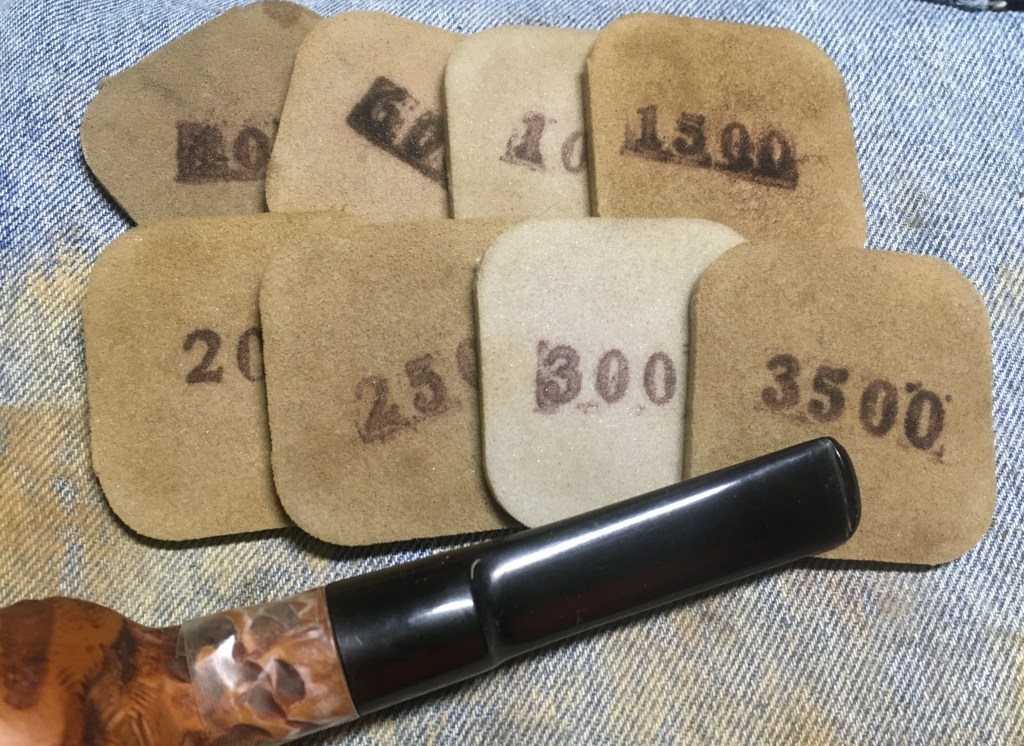

Eventually the stem was sanded with a series of sanding sponges from 400-3500 grit. Between the sponges the stem was rubbed with mineral oil and wiped with a dry paper towel.
I was apparently getting tired and failed to photograph the micro-meshing of the stem. The next step was to coat the stummel with Before and After Restoration Balm and let it sit for 30 minutes.
After 30 minutes the Restoration Balm was wiped off with an inside out athletic sock.
It was at this point that I decided to try another novel technique on this pipe. I had not worked with a shellac finish on a pipe in a long time, perhaps even before I started blogging back in October of 2023. I slid the stem out about ¼ inch or ½ cm to provide a handle but not get any shellac on it. I used a disposable foam brush to apply a very thin coat of shellac to the stummel. The briar absorbed the shellac quickly and it dried as the alcohol solvent evaporated. Now for the weird part – I slightly wetted a paper towel with 99% isopropyl alcohol and wiped the stummel with the paper towel. This smoothed the shellac remaining on the surface of the panels. I only applied the single coat of shellac as I don’t really like the look of a clear coat on pipes. This wasn’t really a clear coat, more of a sanding sealer and a layer of protection of the carved surfaces from dirt and hand oils. I let the stummel dry for about 15 minutes then took it to the buffer for a polish with white diamond compound. The entire pipe was then wiped with a clean dry cotton cloth to remove any remaining buffing compound. The stem and stummel then received several coats of carnauba wax with the buffer. A quick hand buffing with a microfiber polishing cloth and she was finally finished.
I would like to thank you for making it this far into this dissertation. It is actually longer than many Masters Degree dissertations that I’ve read. Perhaps I’ll be awarded an honorary masters from some pipe restoration university. That’s a thing, isn’t it? A special thanks goes out to the machinist Christian, who may or may not actually go by that name. I had now successfully turned the $16 pipe into a $25 pipe, which equated to about $0.50/hour. Good thing I’m retired or the U.S. The Department of Labor would be filing suit for unfair pay. In all honesty, this pipe provided me with some new challenges and did exactly what I wanted it to do, allowed me to practice doing what I love to do – learn new and hone existing techniques. The pipe turned out amazingly well. This one will be joining my personal collection. The dimensions of this Marxman Jumbo C are:
Length: 6.01 in./ 152.65 mm.
Bowl Height: 1.73 in./ 43.94 mm.
Weight: 2.13 oz./ 60.60g.
Chamber Depth: 1.32 in./ 33.53 mm.
Chamber Diameter: 0.91 in./ 23.11 mm.
Outside Diameter: 1.76 in./ 44.70 mm.
I do hope that you have found something here useful to your own pipe care, maintenance or restorations. If you like this sort of thing, please click the like and subscribe buttons. Thank you for reading the ramblings of an old pipe lover.
Loading…
Below are some photos of the finished Marxman Jumbo C.
Here I go again with another Marxman. Okay, I haven’t restored a Marxman since March 18, that’s like four months. In dog years it is over two years. I think it is about time to return to one of my favorite brands and this is a beauty. An unsmoked Mel-O Pear. How it ended up with a cracked shank, I’ll never understand. This darling came to me from eBay, and traveled all the way from Yuma, Arizona. Maybe that dry desert heat is what contributed to the crack. The description from the seller read as follows, “Vintage Marxman Tobacco Pipe Melo-O Imported Italy there minor cracked other than that very good”. Where they got the “Imported Italy” from is another mystery. True the stamps are faint and partial but I can make out a “B” after IMPORTED and the last time I checked Italy starts with an “I”. The other stamps are MEL~O over MARXMAN. The “MAN” looks to have suffered the same fate and the BRIAR never having been properly stamped. Below are some photos of the Marxman Mel-O as it arrived.
Background
On January 11, 2024 I blogged about a Marxman Gold banded Dublin (linked if you are interested) and wrote the following about Robert Marxman and Marxman pipes:
“My recent fascination with the post-World War Two (WWII, to properly use an acronym) led me to further appreciation of the Marketing genius of Robert Marx, the founder of Marxman Pipes Inc. Allow me to illustrate:
Those are the back covers of Pipe Lovers Magazine for each month of 1946. That represents a substantial investment in building and maintaining one’s brand name.
Here is a quick review of Marxman pipes from pipedia.org:
“Marxman (Marxman Pipe Company) was created by Robert (Bob) L. Marx in 1934, when he was 29, and after he had worked for the William Demuth Company. His pipes were not outstanding because of the quality of their wood (probably Algerian), but Bob started making unique sculpted pieces, which brought the brand fame in the World of Hollywood cinema. Actors like Zachery Scott, Dennis Morgan, Jack Carson, Alan Hale, Joel McRae, and Ronald Reagan were some of the faces that appeared on the bowls.
Bob knew how to innovate and took full advantage of marketing and press advertising in order to sell the brand–one of his slogans being “Relax with a Marxman”.
In a recent forum post on Pipesmagazine.com, contributor jguss posted the following from the February 2, 1935 issue of the UnitedStatesTobaccoJournal:
A remarkable article showing the business acumen as well as a photo of the man himself. Thank you, jguss.
This is one of my favorite quotes about Rober Marx:
“Ted also said: Several years before UST bought Mastercraft, M/C had aquired Marxman Pipes. A wonderful kind man, Bob Marx was still working as a salesman in NYC, and I was fortunate to make a few sales calls with him. You all remember Charles Atlas? Bob Marx was about 76 and had just been awarded the (I think) Atlas Award for being the finest speciman of manhood over 70 years old in NYC, or maybe the state.
M/C had some inventory of Marxman stuff, but not a lot. I know very little about Marxman. Did they make, import, or both?” (Mastercraft – Pipedia)
The “Ted”, who is being quoted above, was the nickname of Tom Douglas. Here is an announcement of Mr. Douglas’ passing from Pipesmagazine forum November 26, 2018:
“Tom Douglas passed away at 71 years of age, this past Saturday, in Florida. It seems he had an infection in his stomach, but I don’t know much more than that, regarding what actually contributed to his death. He did have a history of heart and other health complications. I just spoke very briefly with his wife Joyce; you can imagine how she’s doing.
The impact Tom had on the pipe community is huge…beginning with an immense library of pipe knowledge through the pages of the Dr. Grabow Collectors Forum….his 25 years of service at the Grabow / Sparta pipe factory (where he retired in 1991)….his executive leadership over Mastercraft distribution for many years…”
So, at 76 years old Robert Marx was still involved in the business that he must have loved. This would have been around 1980.”
Then last winter, Mark Irwin, of Peterson Pipe Notes and author of The Peterson Pipe book, sent me a c. 1945 Marxman Brochure. I photographed the pages of the brochure and included them below.
One of the easiest things to date is a Marxman pipe. The company was formed in 1939 and sold in 1953 to MasterCraft. Though the Marxman name continued after 1953 the pipes were made in France or Italy and stamped as such with Country of Manufacture (COM) stamps. This means that a non COM stamped Marxman pipe was made in New York City between 1939-1953.
The Restoration
A clean denim piece on the work surface began this restoration. The edge of the shank was given a very slight bevel with 320 sandpaper. You can see the lighter ring on the briar below from the sanding.
I checked which size of brass tubing would be the best fit for a band for the Mel~O, ⅝ inch was nearly perfect. I measured how wide I wanted the band. For this pipe a narrow band seemed appropriate and would provide the strength needed to compress the crack and not cover the carvings on the shank. A pipe cutter was used to cut the 5/8th inch stock.
The band was cut. The interior edges were lightly filed with a rounded needle file, giving them a very slight bevel on bothe the interior and exterior surfaces. Then the edges were lightly sanded with 320 and 400 grit sanding sponges.
There was zero draw through the pipe. I removed the stinger and noticed that it was completely sealed with some obstruction.
Using needle nose pliers I was able to pull a couple of tiny pieces of metal from the end of the stinger.
At this point I assumed the stinger was meant to be a tube rather than a cylinder. I thought that maybe a previous owner had somehow wedged a pipe cleaner into the draft hole. I tried pushing a fly tying bodkin through what I thought to the tube. It was completely sealed.
I figured that it might be worth a try to drill out the hole through the tube. I tried a couple of drill bits and found the 5/32 inch to be the best fit.
Holding the stinger firmly with a Vise-Grip I tried drilling the aluminum with an electric drill. This proved pretty futile. There was no way that I could hold both the stinger and the drill straight enough to allow a good hole through the aluminum.
To make matters worse there appeared to be a steel wire within the aluminum which was pushing the drill bit to the side. With continued drilling the bit would be forced to the side of the aluminum stinger not through the center. I abandoned the idea of drilling the aluminum. Hmm, perhaps this is the universe’s way of telling me that I need a drill press?
I thought about various stingers. Many are a solid piece of aluminum but they have a groove or slot milled in them to allow for an airway. Perhaps this piece was supposed to have a slot cut in it. How this was neglected, if it were indeed neglected, made little sense but stranger things have happened. I set the stinger aside and continued pondering as I worked on the next task.
The next task was cleaning up the stem. This pipe must have been stored in a box or drawer as it had minimal oxidation, pretty amazing for a 75 year old pipe. I first sanded the surface with a 600 grit sanding sponge. This removed the surface oxidation and dirt and also revealed a strange rough spot. Try as I might I was not able to get rid of the rough area with the 600 sponge so I backed off to a 400 grit sponge. This worked to remove most of the rough area. The spot was resanded and smoothed with the 600 sponge.
I then scrubbed the stem with SoftScrub on make-up pads. This removed additional oxidation and left the stem looking like and black with fresh clean vulcanite.
As I drew air through the stem I heard a whistling. I took this to mean that there was a turbulent flow of air through the airway. The tenon was flat cut. Why not give it a nice countersunk bevel and polish that a bit, I thought.
Using a couple drill bits I just held in hand and twisted the bits removing the rubber from the tenon. This was then sanded with 220, 320 and 400 sandpaper to smooth the bevel. Below you can see the polished bevel. Drawing through the pipe was now silent.
The stem airway was quite clean and only produced the dirt from manufacture and age on the pipe cleaners dipped in 95% ethyl alcohol.
Next the stummel was taken to the sink to rid it of it’s accumulated grime. The three amigos of scrubbing were present and accounted for.
From previous experience with the soft Algerian briar that Marman used I opted not to use the brass brush on the rusticated carvings. I began with Undiluted Murphy Oil Soap and a medium stiff toothbrush. Additional Murphy’s was added and a second scrub with the nylon scrub brush was done. The soap was rinsed with warm water and the stummel dried with a cotton hand towel.
Below is a photo of the scrubbed stummel back at the workbench. I took the shininess to indicate that wax or finish was still present on the briar.
I scrubbed the stummel with 95% ethyl alcohol and a toothbrush to remove any traces of shine.
The stummel was then scrubbed with 95% ethyl alcohol on a make-up pad. Extra attention was paid to the carving grooves.
And again.
There we go, no more shine. I then started to fit the band to the shank. The shank needed to have a slight bit of briar removed in order for the band to fit. I slowly and carefully filed the shank end. I wanted the band to be press fit. A hard press, that is.
Eventually I got the fit that I wanted. I applied thin cyanoacrylate (CA, super glue) to the crack, the thin formula allows ready penetration into the crack. The band was then pressed into place using a tapping block. The outside end of the band required a little bit of filing to allow a precise fit with the stem and a light sanding with 400 and 600 sanding sponges.
The pipe, stem and stummel, were then sanded with a sequence of sanding sponges from 400-1500. Between each sponge I wiped the stummel with a make-up pad dipped in alcohol. The stem received a dab of mineral oil from my fingertip rubbed onto the vulcanite then wiped with a paper towel.
The above was repeated for the 2000-3500 sanding sponges.
The pipe was then micro-meshed with 4000-12000 pads. The stummel was wiped as before while the stem received Obsidian Oil rather than mineral oil.
The pipe was then given a coat of Before and After Restoration Balm and allowed to sit for 20 minutes.
@0 minutes later the Restoration Balm was wiped from the pipe with an inside out athletic sock. Again extra attention was paid to rubbing the carved grooves thoroughly.
I wasn’t sure which type of wax would be best for protecting and preserving the rusticated carvings. I opted for Renaissance Micro-Crystalline Wax. No, not because I like the smell. Well, yeah, kind of because I like the smell. Also because it seems to penetrate into the non-sanded briar.
The wax was applied with a baby toothbrush.
I let the wax dry for 15 minutes and replaced my carnauba wax buffing wheel with a clean flannel wheel and buffed the stummel. I used the corner of the wheel to work into the carvings.
The carnauba buffing wheel was returned to the buffer and the stem, rim and stampings received several coats of carnauba wax.
This was a fun restoration as I enjoy banding cracked shanks. I think the polished brass gives the rusticated briar a touch of classiness. The briar of this Mel~O shows some grain pattern on the rim, nothing great but still pretty. The color though is outstanding and is contrasted very nicely with the glossy black vulcanite separated by the brass band. Overall I am pleased with how the pipe turned out. I am looking forward to the first smoke with this Marxman. There is something unique about the briar with these old pipes, they have a slight spiciness like cinnamon and nutmeg when first smoked. You can get it from a freshly reamed and sanded Markman as well. Strangely satisfying or, I could be imagining it allowing my tastebuds to succumb to my weird emotional attachment to the brand. Either way, I like these old pipes. The dimensions of the Marxman Mel-O Pear are:
Length: 5.40 in./ 137.16 mm.
Weight: 1.30 oz./ 37.00 g.
Bowl Height: 1.61 in./ 40.89 mm.
Chamber Depth: 1.10 in./ 27.94 mm.
Chamber Diameter: 0.78 in./ 19.81 mm. (conically bored)
Outside Diameter: 1.58 in./ 40.13 mm.
I do hope that you have found something here useful to your own pipe care, maintenance or restorations. If you like this sort of thing, please click the like and subscribe buttons. Thank you for reading the ramblings of an old pipe lover.
Below are some photos of the finished Marxman Mel-O Pear.
NebraskaPeteGeek
